I think curves look amazing on boats and so i put them anywhere i could, the extra time it took was negligible to the outcome of what the boat looked like painted. A very good mate of mine Dave came around and gave me about 4 days help on the torture boards to get the sides looking perfect and then it was time to paint.
I finished off the steering but in a curious case of mistakes put the steering cable on the wrong end resulting in the steering being backward which i didn’t discover till we had put her in the water.
Along the way i priced up getting some stanchions and bow rails made up, when the quote came back around the 4500 mark i went and bought the 25mm pipe and taught myself to tig weld and fabricated up 18 stanchions and 2 sets of bow rails which i then sanded and polished these came up a treat and at a saving of around 3500 were well worth the experience of learning to Tig weld.
My beautiful wife did not have a lot of passion for the boatbuilding but was more than ready to give me a hand to mask up and no skid the boat over a couple of evenings



big curved fillets look great

anchor winch

helm ready for wheel

steering connected

push pull cable for steering

toilet holding tank

base for mainsail track

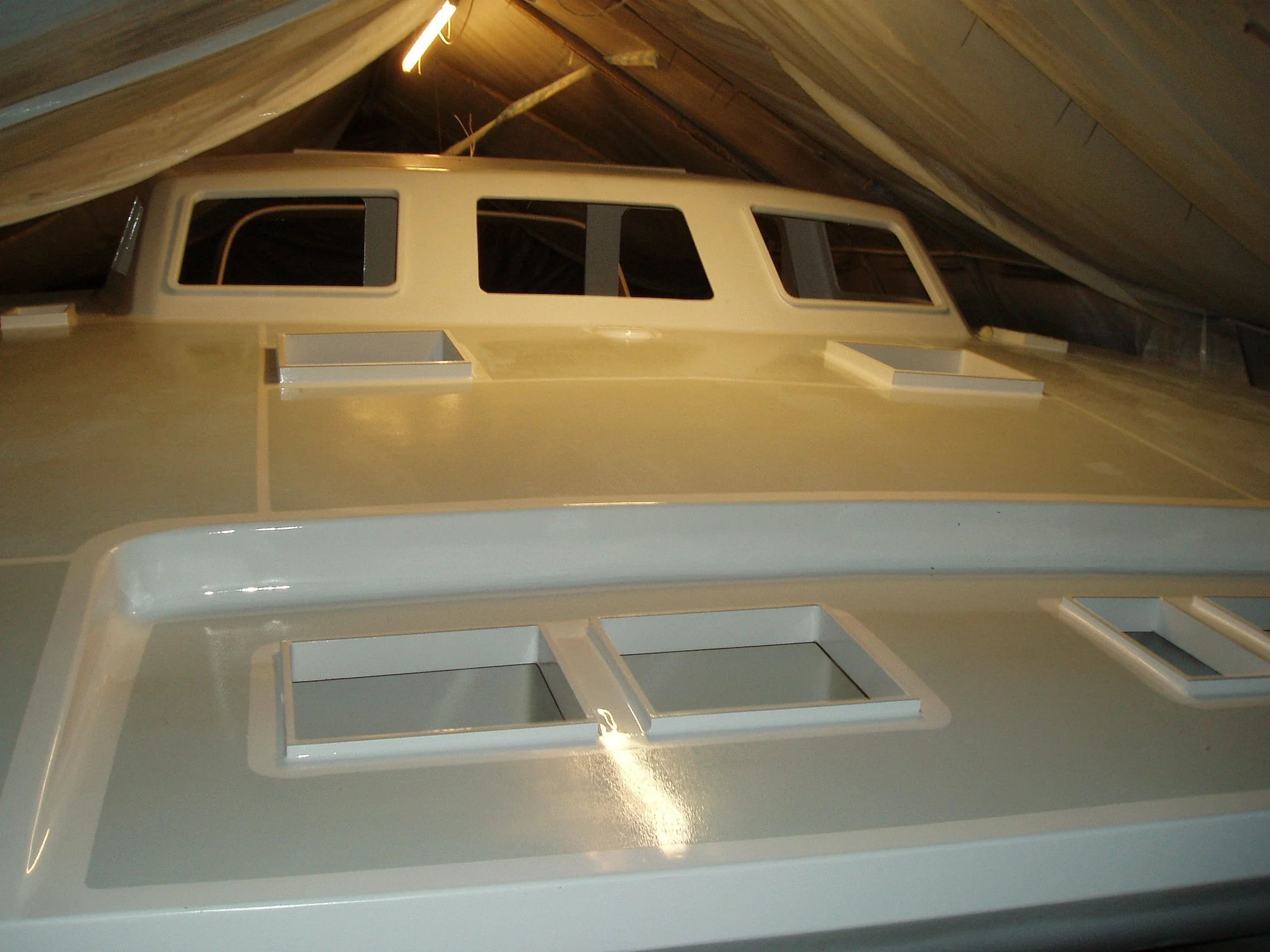

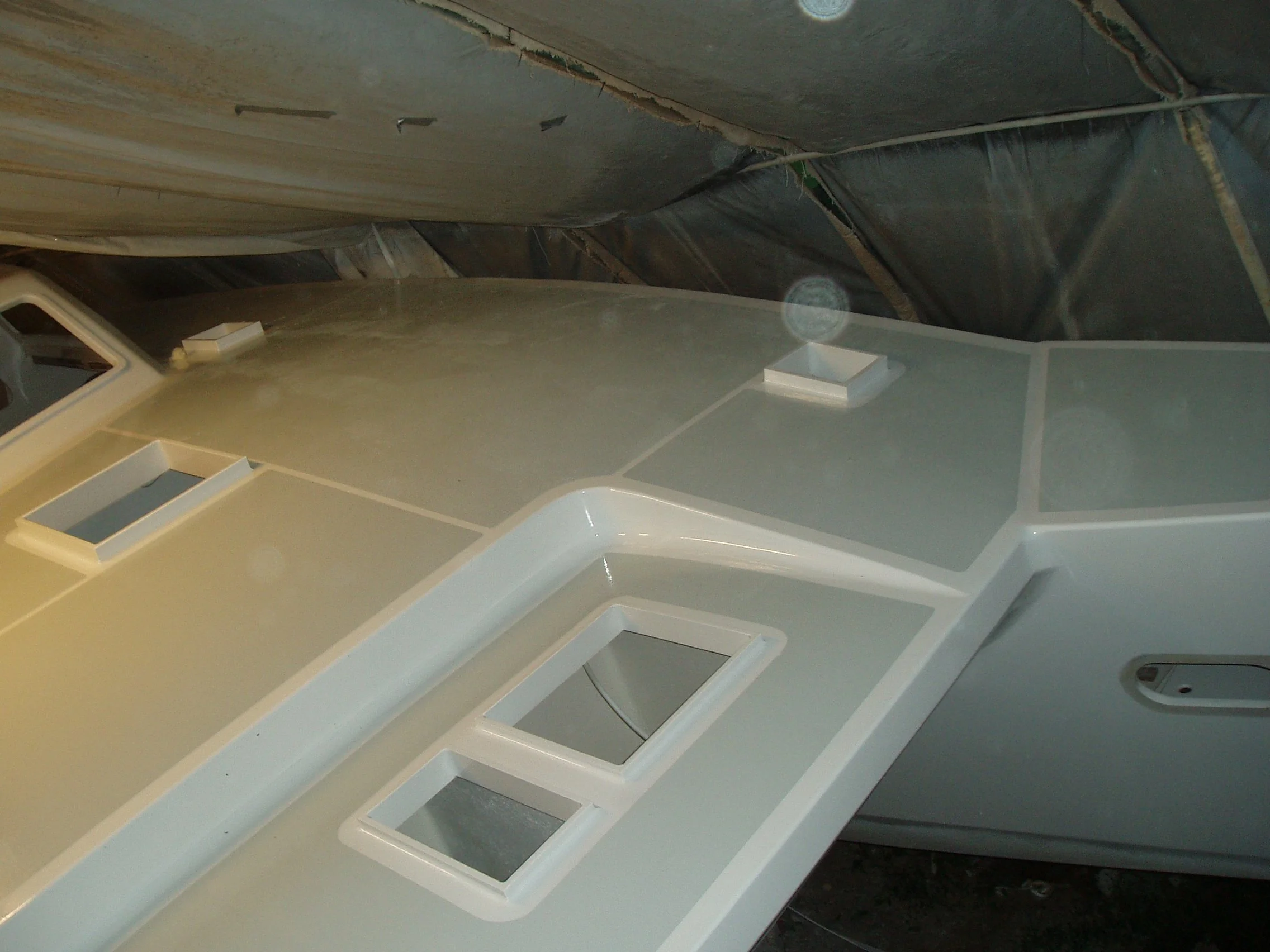

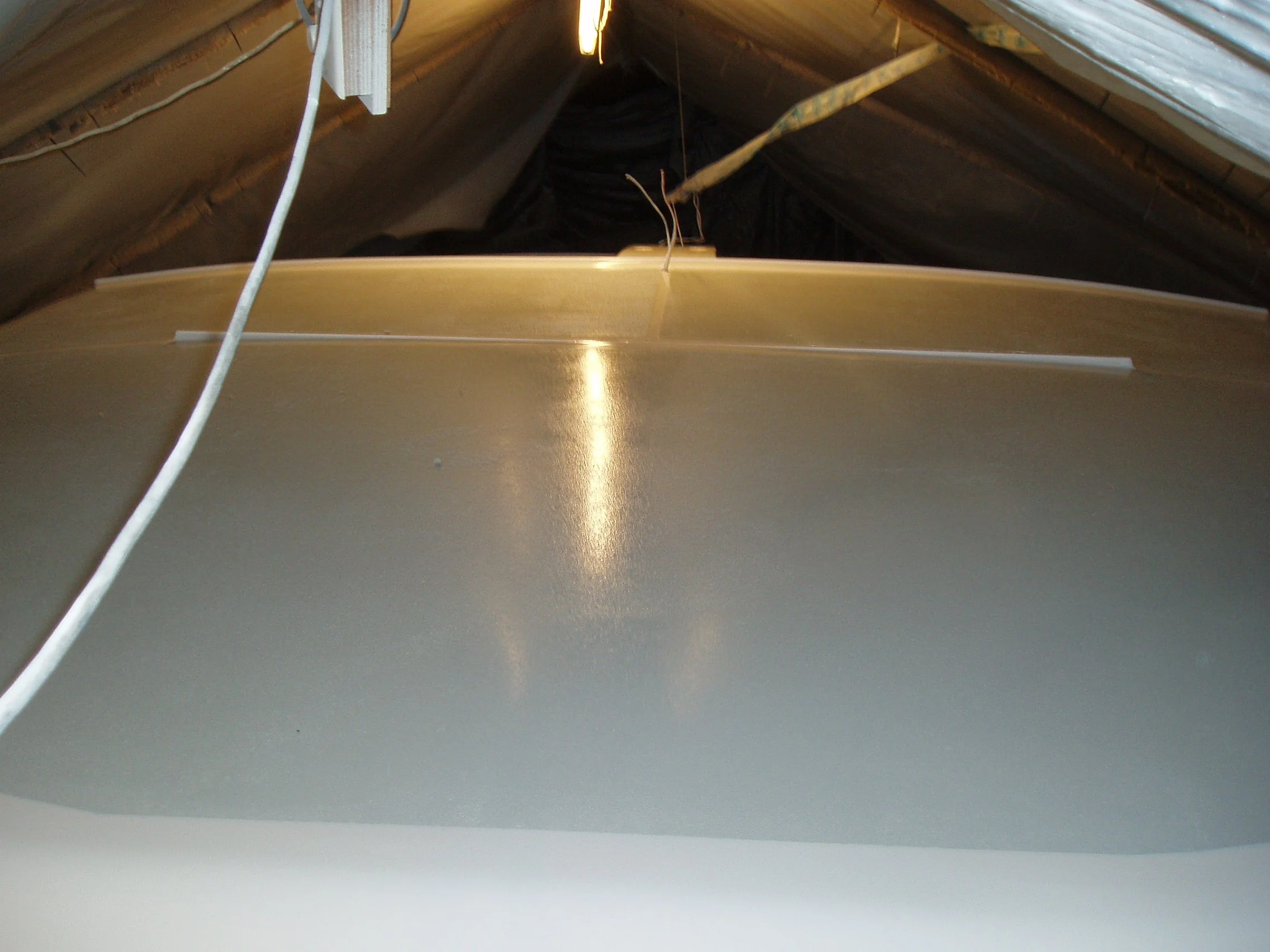

all painted up, probably the best paintjob i ever did, the temp in the top if the tent was hitting 60 degrees, which pretty much baked the paint on

sanding and fairing

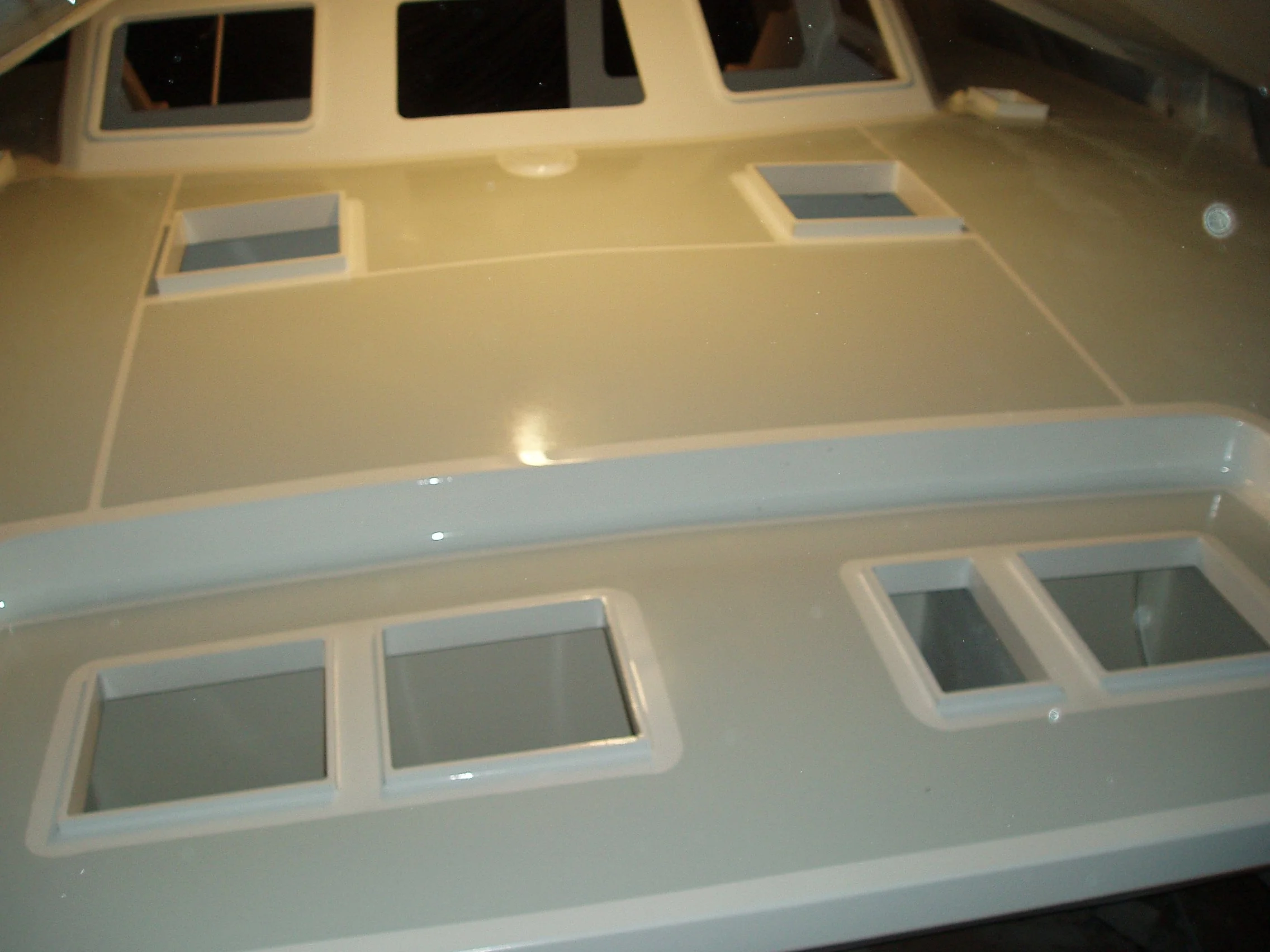

all up i ended up with a much better finish than i expected

steering rod enclosed in nice round piece of glassed on pipe





always good to have a little helper or 2

home made staunchions

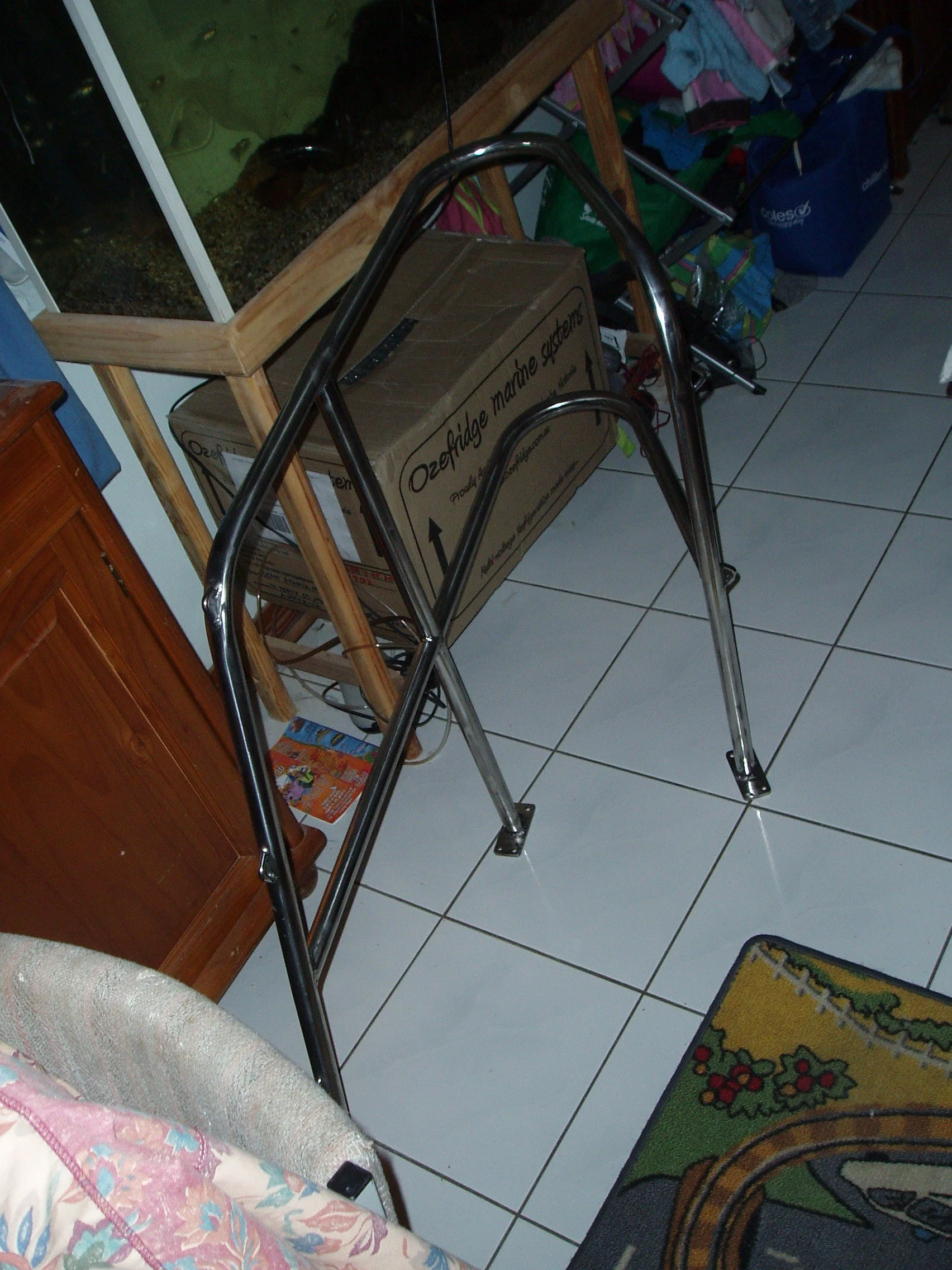

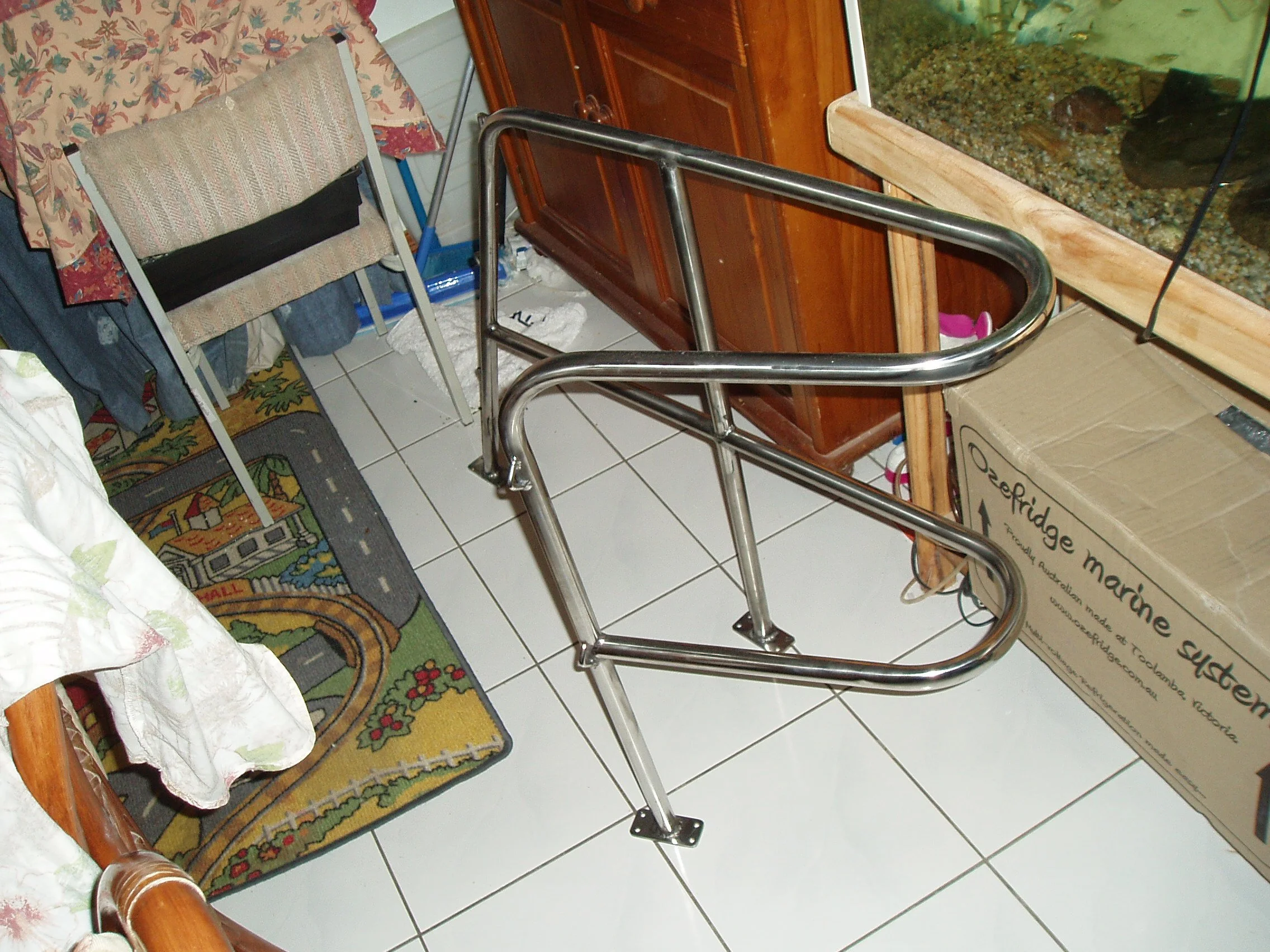

home made bow rails

stainless bollard for the big reef moorings

chain plates all shined and polished ready for installation

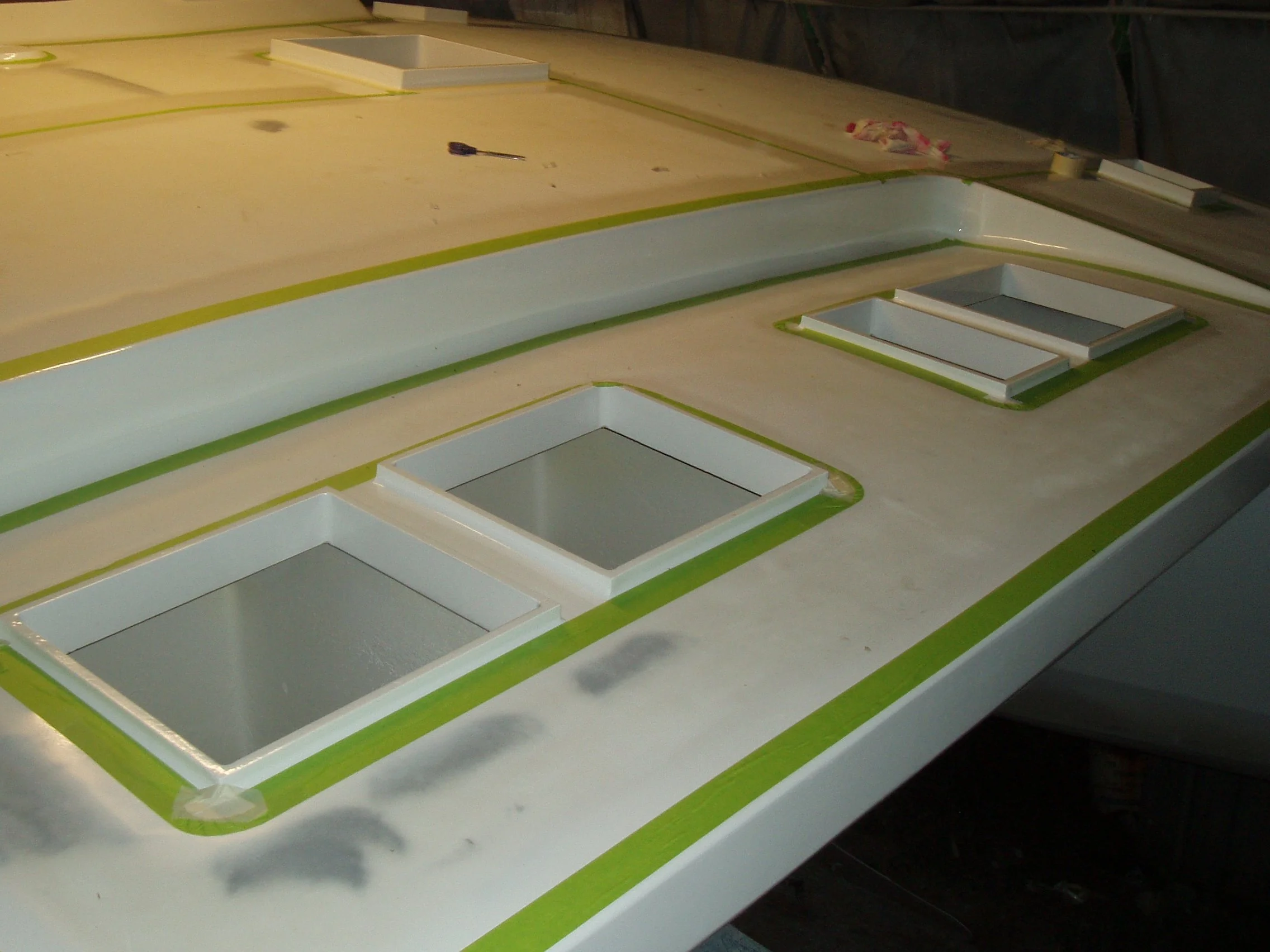

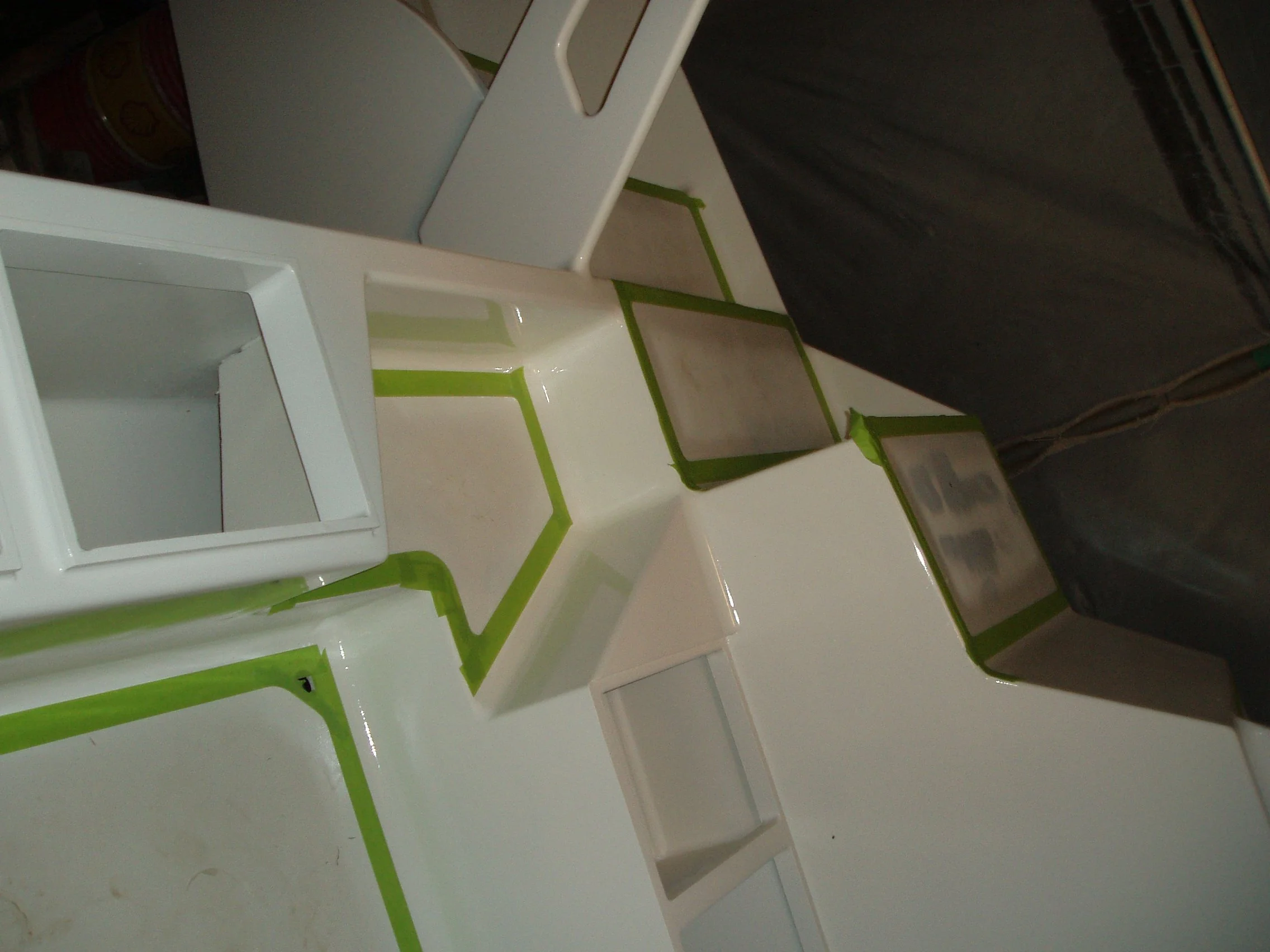

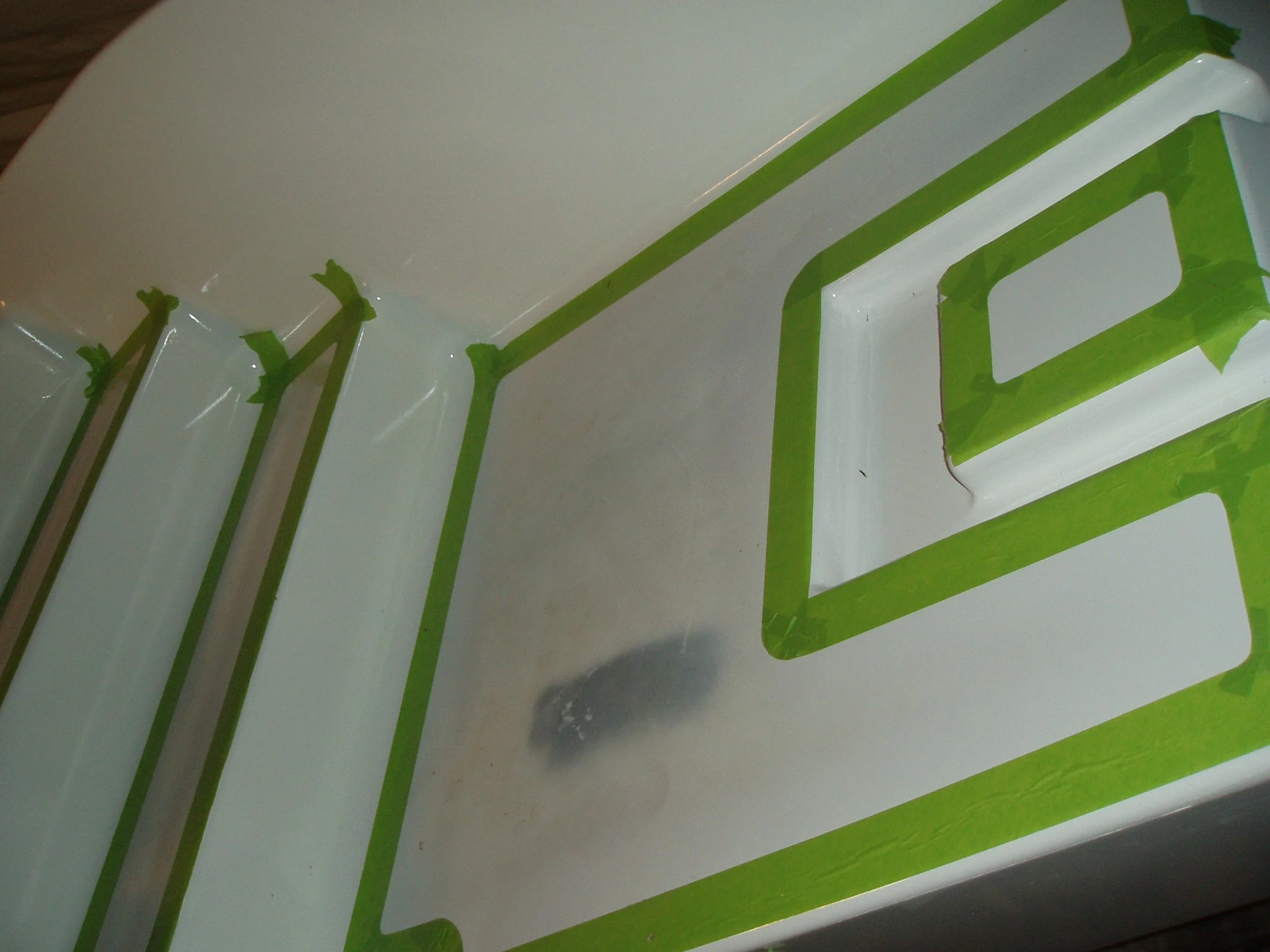

tania masking up for non skid, i think we ran out of the nice masking tape

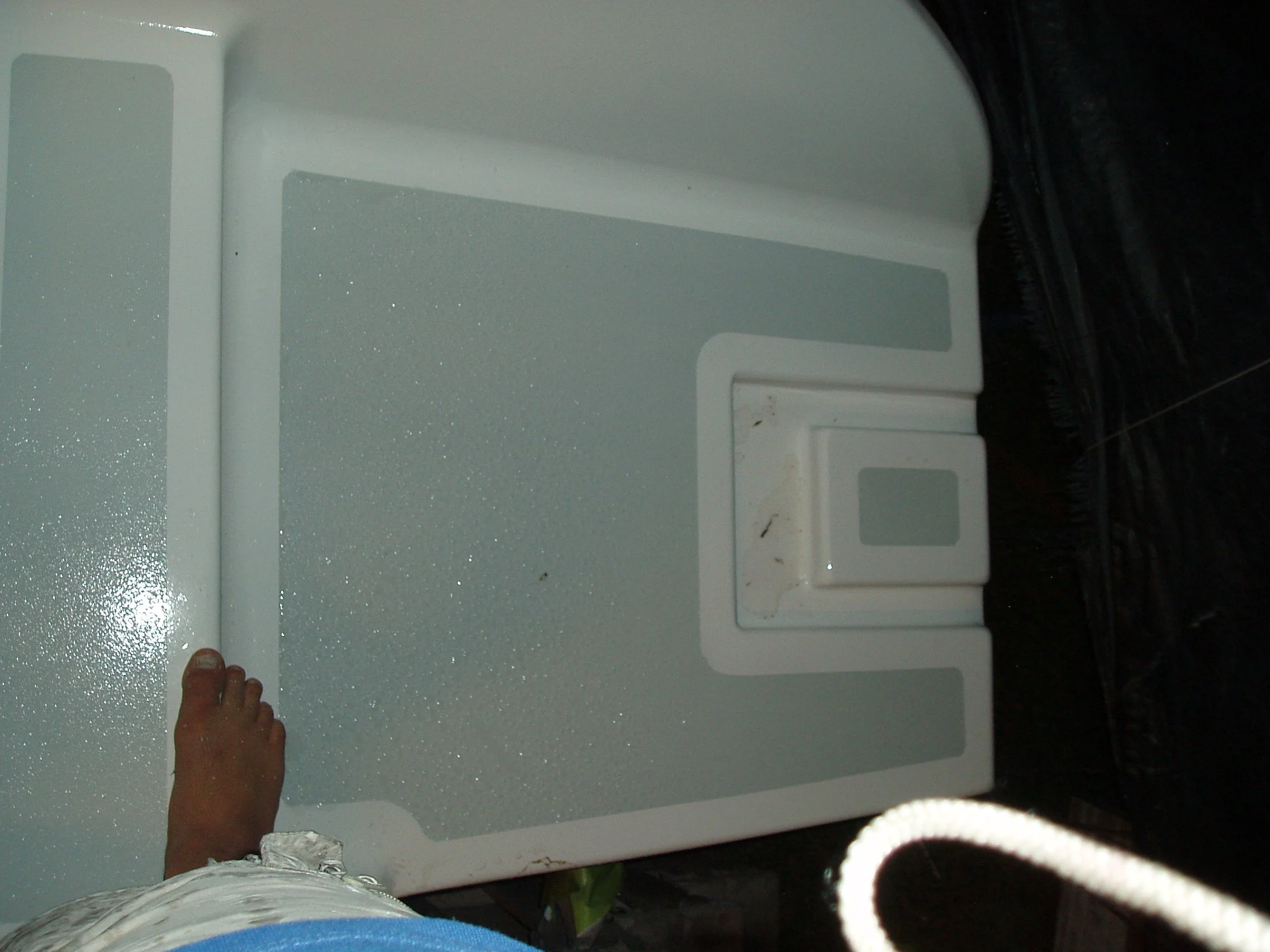

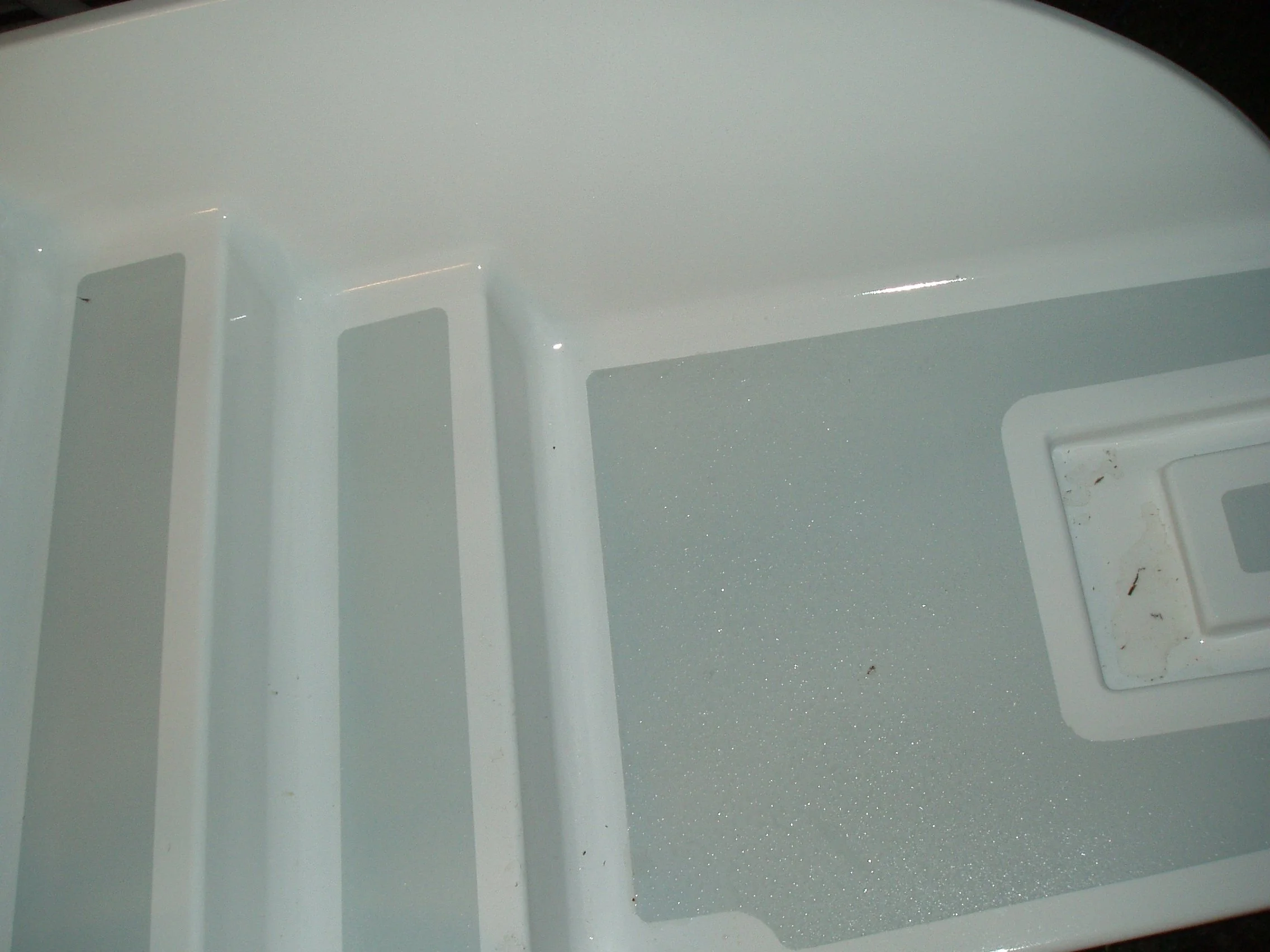

non skid applied

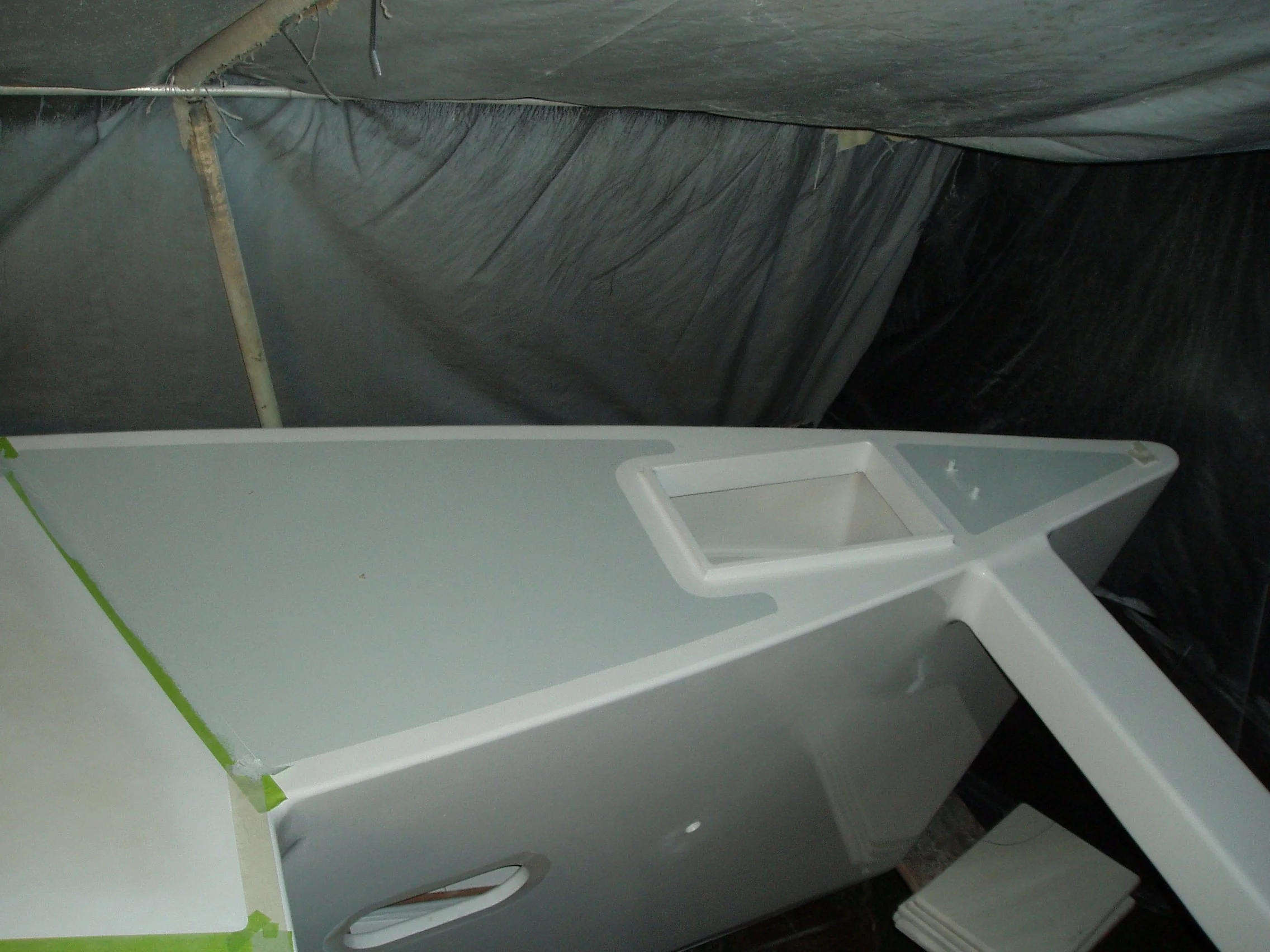

front locker for bollards
ready for the boarding ladder
ready for hatches and windows

window installation
